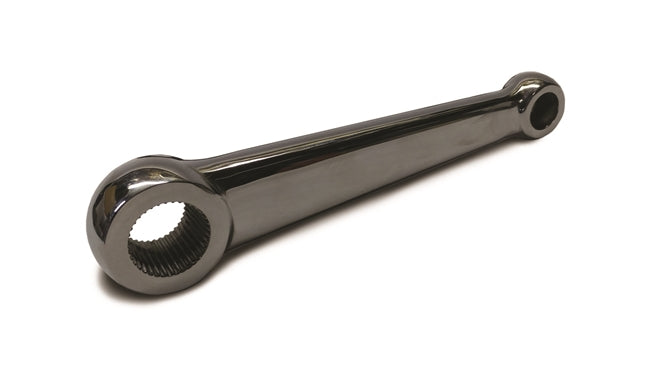

GT2 Vega Steering Pitman Arm
For Use With Manual Vega Steering Boxes
Center to Center: 6 1/4"
Tie Rod End Taper Angle: 7 Degree **Tapered From Top Side
Spline for Steering Box Output Shaft: 1" - 32 Spline Tapered
Straight design for non-offset applications keeps the pitman arm 90 degrees in relation to the output shaft. American Hot Rod Parts' pitman arms are made of 17-4 investment cast stainless steel. This pitman arm is also available un polished. Search for Pitman Arm in the search box to learn more.
||Stainless Steel Vega Pitman Arm|
NOTES & TIPS:
This pitman arm is designed with a single taper from the top side for maximum tie rod engagement. If your application requires the tie rod end being installed from the underside, a double tapered option is also available - call for details.
