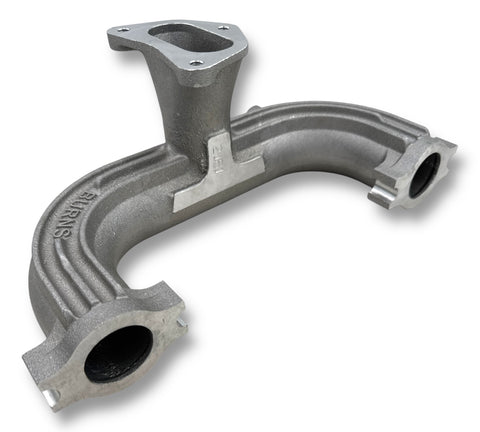

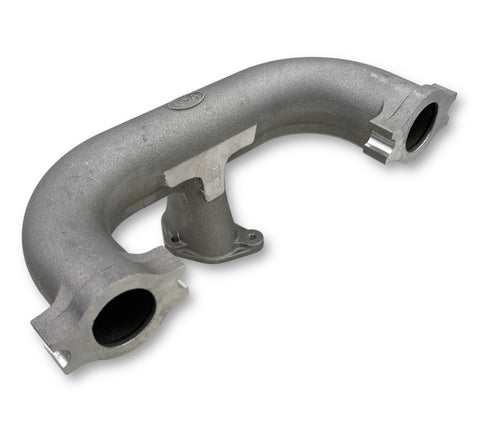

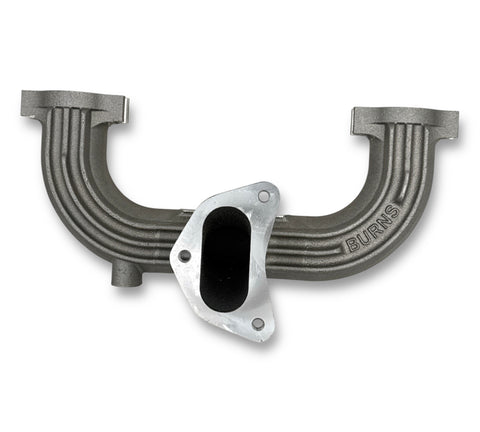

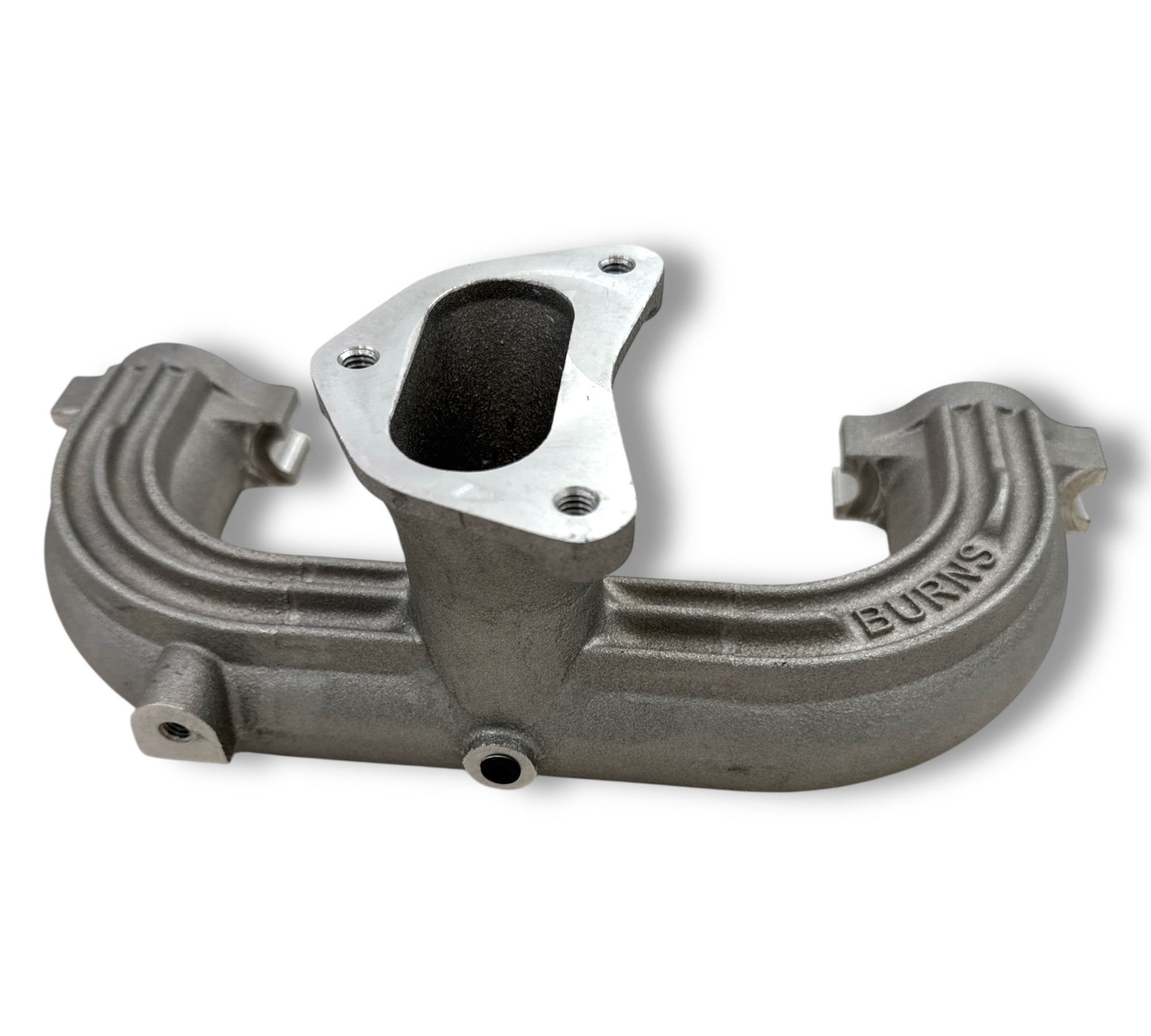

Burns Racing Single Carb Downdraft Intake Manifold - Ford Model A/B 1928-1934

Part Number: BRE-1002

Description:

This single carb setup is an excellent choice for any model a enthusiast, that doesn't want to deal with the constantly leaking and temperamental stock zeniths that came on these cars. Allows for bolting on of modern carburetors like the Stromberg 81 and 97 or the original style ford 94 (Engine specific).

This version does not have the heat plate for the stock manifold, and is instead intended to be used with a aftermarket header.

The stock version with the heat plate can be found here

Any car using headers will require a set of aluminum spacers to clearance the intake manifold. These can be found here

Included:

• Single carb aluminum intake
• Manifold to engine gasket
• Carb to intake gasket

Recommended:

We highly recommend running a low pressure fuel pump and pressure regulator to feed the carburetors when using these intakes. Due to the height difference of this intake over the stock one, there is insufficient head pressure in the stock gravity fed system to feed the carburetor under heavy acceleration, or climbing steep hills. (Keep in mind, when adding a fuel pump, to use a relay and not wire it directly to the key, as these are high amperage motors)

• 6V Fuel pump: Airtex E8902
• 12V Fuel pump: Holley 12-425
• Fuel pressure regulator: Summit racing G-3033 (Or equivalent 1-4 PSI)
