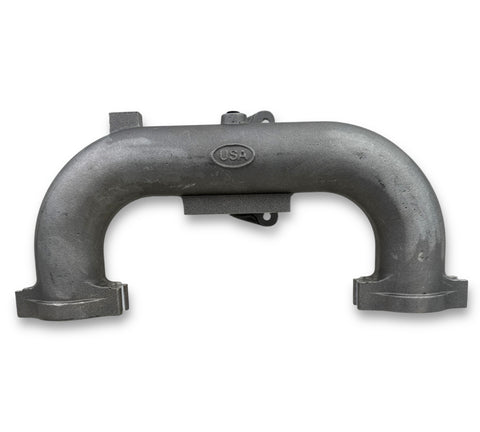

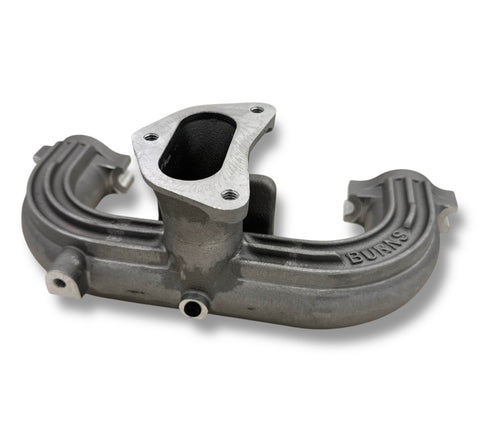

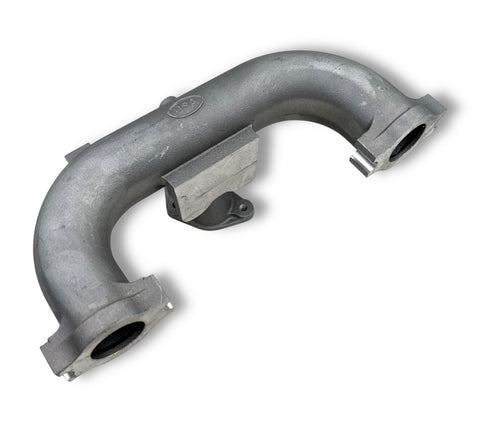

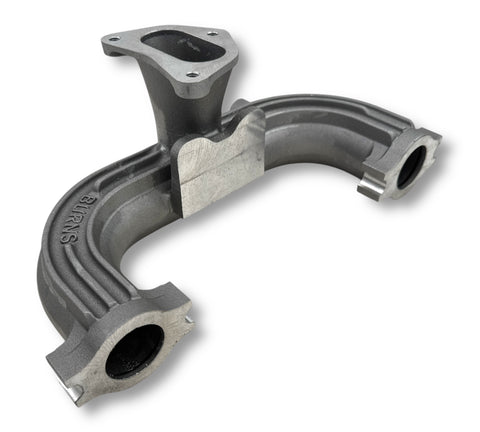

Burns Racing Single Carb Downdraft Intake Manifold W/Heat Plate - Ford Model A/B 1928-1934

$ 329.95

Part Number: BRE-1001

Description:

This single carb setup is an excellent choice for any model a enthusiast, that doesn't want to deal with the constantly leaking and temperamental stock zeniths that came on these cars. Allows for bolting on of modern carburetors like the Stromberg 81 and 97 or the original style ford 94 (Engine specific).

This version is equipped with a heat plate, just like the stock manifold. Allows you to run the stock exhaust manifold with no issues.

Running headers? This intake is also available without the heat plate with more clearance.

Included:

  • Single carb aluminum intake
  • Manifold to engine gasket
  • Carb to intake gasket

Recommended:

We highly recommend running a low pressure fuel pump and pressure regulator to feed the carburetors when using these intakes. Due to the height difference of this intake over the stock one, there is insufficient head pressure in the stock gravity fed system to feed the carburetor under heavy acceleration, or climbing steep hills. (Keep in mind, when adding a fuel pump, to use a relay and not wire it directly to the key, as these are high amperage motors)

  • 6V Fuel pump: Airtex E8902
  • 12V Fuel pump: Holley 12-425
  • Fuel pressure regulator: Summit racing G-3033 (Or equivalent 1-4 PSI)
