DESCRIPTION

This bolt in spring will lower your car 3" inches (4" if your remove a few leafs) with no alterations needed to your stock Model A frame or body in a "spring over" application. Based on the 26/27 rear T-Spring dimensions using OEM FoMoCo specifications, this spring is built to Model A rear spring width (2.25′′ inches) to fit in a Model A rear cross member without use of shims or spacers Additionally, this spring works well in 32-34 frames with "spring behind" applications and is also compatible with traditional quick change set ups. Made in the USA of SAE 5160 rolled steel.

NOTE: Only available in reverse eye.

DIMENSIONS

Overall Width: 42.5” inches eye to eye
Overall Unsprung Height: 17” inches
Spring leaf width 2.25” inches

RESOURCES

Spring paint preparation instructions

Need original or repro Ford Parts? Visit our Ford Store.

HAMB ALLIANCE MEMBERS

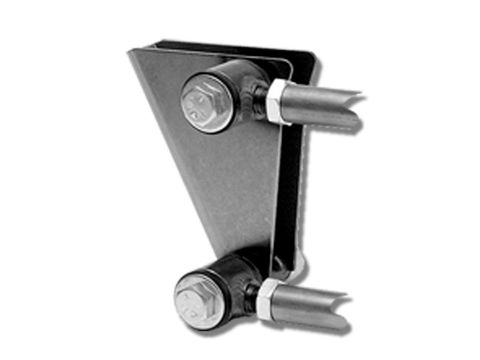

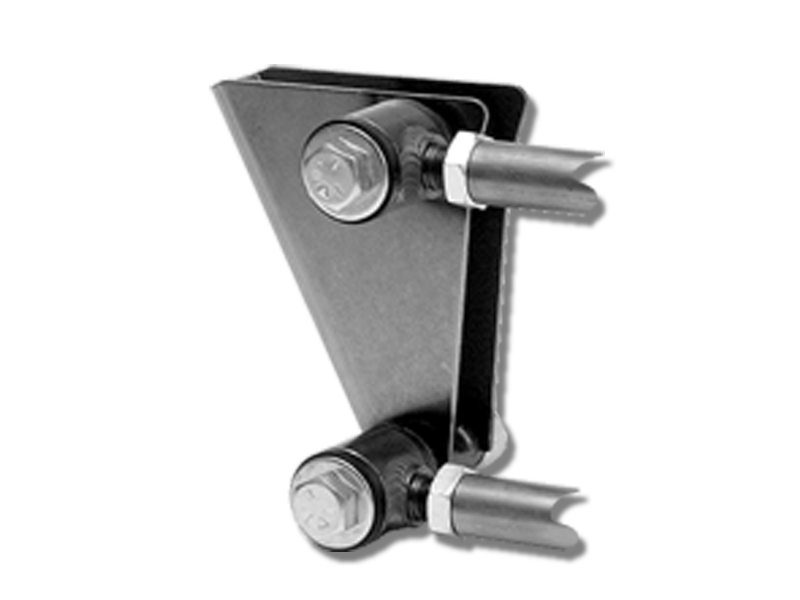

1928-31 Ford Model A Parallel 4-Bar Front Hanger (Each)
