DESCRIPTION

This bolt in spring will lower your car 3" inches (4" if your remove a few leafs) with no alterations needed to your stock Model A frame or body in a "spring over" application. Based on the 26/27 rear T-Spring dimensions using OEM FoMoCo specifications, this spring is built to Model A rear spring width (2.25′′ inches) to fit in a Model A rear cross member without use of shims or spacers Additionally, this spring works well in 32-34 frames with "spring behind" applications and is also compatible with traditional quick change set ups. Made in the USA of SAE 5160 rolled steel. Available with or without spring shackles and urethane bushings.

NOTE: Only available in reverse eye.

DIMENSIONS

Overall Width: 42.5” inches eye to eye
Overall Unsprung Height: 17” inches
Spring leaf width 2.25” inches

RESOURCES

Spring paint preparation instructions

Need original or repro Ford Parts? Visit our Ford Store.

HAMB ALLIANCE MEMBERS

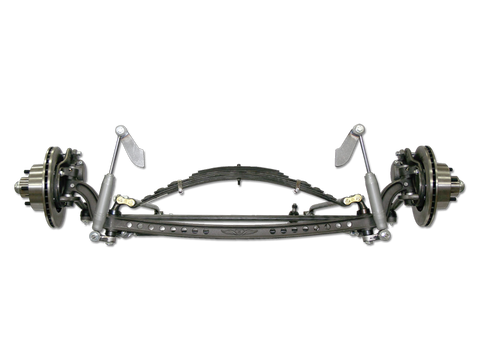

1928-31 Ford Model A Complete Front End Drilled I-Beam Axle
