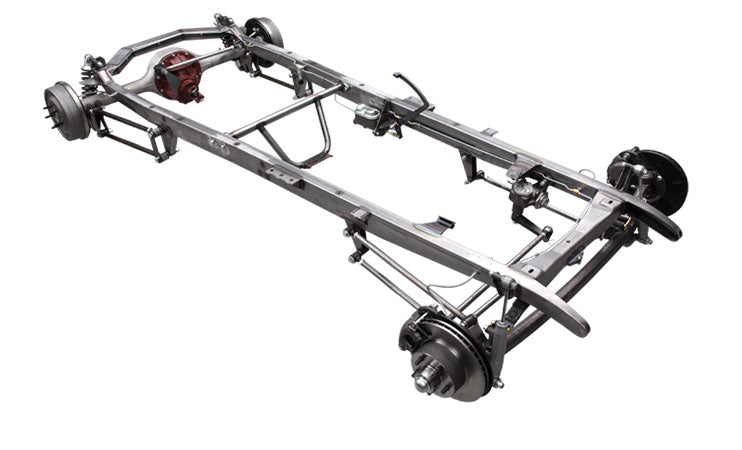

1928-31 Ford Model A Complete Modern Style Frame

$ 8,689.99

Standard Features

This chassis is setup to all original dimensions with the exception of raised rear crossmember (stock buggy style available), fully boxed 2"x4" x.125" rectangular rails for strength and appearance. Front and rear crossmembers are installed and all brackets are welded and pilot drilled. All body mounting holes are 3/8" nutserts.

  • Drop axle with 4" drop, tube or I-beam
  • Choice of 4 bar or hairpin
  • Complete Vega cross steering
  • Front disc brakes (5x4.5" or 5x4.75")
  • Motor mounts (Chevy or Ford)
  • Transmission Mount (Chevy or Ford)
  • Dual master cylinder mount with master cylinder
  • Brake Pedal
  • Ladder Bar rear kit or rear 4 bar kit
  • 9" Rear w/axles 11" drum brakes and rebuilt 3.00 gear ratio
  • Coil over kit w/Viper alloy shocks
  • Rear Panhard bar

SHIPPING AND CRATING IS AN ADDITIONAL CHARGE THAT WILL BE BASED ON THE WEIGHT OF YOUR CHASSIS BUILD. THIS WILL BE QUOTED TO YOU AFTER WE RECEIVE YOUR ORDER.

Additional available options

  • Power Brake Option FRPJ-1001PB
  • Smooth Backing Plate FRPJ-1001S
  • Finned Backing Plate FRPJ-1001F
  • Show Chrome on Front I-Beam Axle FRPJ-1001CAX
  • Show Chrome on Drilled Front I-Beam Axle FRPJ-1001CD
  • Clutch Kit FRPJ-1001CL
  • Chrome Front End Option FRPJ-1001CFE
  • Chrome on Posie Spring FRPJ-1001CSPR
  • Front Lincoln Drum Kit FRPJ-1001FLB
  • Brake Line Kit (Installed) FRPJ-1001L
  • Polished Stainless Steel Brake Lines with AN Fittings FRPJ-1001LP
  • Winter’s Polished Billet 9″ Ford Housing Option (with New Axles) FRPJ-1001PW
  • Pro-Street Option (Special Cut 9 inch Housing) FRPJ-1001PRO
  • Front Duel Flex Spring (Plain) FRPJ-1001FS
  • Front Duel Flex Spring (Chrome) FRPJ-1001FSC
  • So-Cal Hairpin Radius Rods (Polished) FRPJ-1001PH
  • C-Notch Rear Chassis FRPJ-1001NR
  • C-Notch Front FRPJ-1001NF
  • Chrome Spindles FRPJ-1001CSPN
  • Chrome Tie Rod Ends (Set of 2 Lefts & 2 Rights) FRPJ-1001CTR
  • Drilled/Slotted and Zinc Coated 1″ Rotors (Pair) FRPJ-1001DSR
  • Wilwood Rear Kit with E-Brake and Polished Calipers FRPJ-1001WR
  • Chrome Rear Four Bar® Kit FRPJ-1001CR4
  • Polished & Chrome Coil Over Shocks FRPJ-1001CCO
  • Chrome Rear Coil Over Bolt Kit FRPJ-1001CRH
  • Chrome Ladder Bars FRPJ-1001CLB
  • Headlight/Shock mount FRPJ-1001HS
  • Wishbones on Chassis FRPJ-1001WB
  • Chrome Wishbones on Chassis FRP-1001WBC

Please call 978.848.0024 to customize your chassis
